Smart Vision Lights

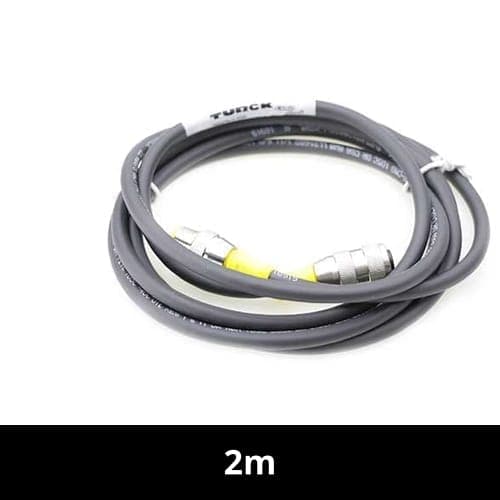

5PM12-J2000-CTL-NSB | SVL Camera To Light Cable, Cognex Gen 2, 2 Meters
Part: 5PM12-J2000-CTL-NSB
Length: 2 m
The SVL 5PM12-J-CTL-NSB series of cables allow you to connect a Smart Vision Light light to a Cognex Gen 2 or newer camera. This allows you to control strobe and constant-on operation without the need for an external power cable.
Product Downloads
Accessories
No accessories available.
Technical Specifications
Dimensions
| Cable Length | 2 m |
| Product Weight | 0.6 lbs / 0.272 kg |
Product Availability
| Stock Location | Factory Stock |
| Product Lifecycle | Active |
| Standard Lead Time | 5 Days |
Temperature Information
| Min Operating Temp | -40°C / -40°F |
| Max Operating Temp | 105°C / 221°F |
Connectors Information
| Connector A | M12 5-Pole A Coded Male |
| Connector B | M12 5-Pole A Coded Female |
Cable Property Information
| Cable Type | 18AWG x 5C I/O |
| Flex Type | Standard Flex |
Operation and Performance Information
| Voltage | 24 VDC |
Electrical Characteristics Information
| Conductor Resistance | 23.2 Ω/km |
| Contact Resistance | N/A |
Mechanical Properties Information
| Jacket Material | PVC |
| Jacket Color | Black |
| Insulation Material | PVC |
| Connector Insulation Material | PVC |
| Contact Plating | N/A |
| Min. Bending Radius | 3 in / 76.2 mm |
| Max. Bending Cycles | N/A |
| Plug Cycles | N/A |
| Tensile Strength | N/A |
| IP Rating | IP67 |
Shipping
| Country of Origin | United States |
