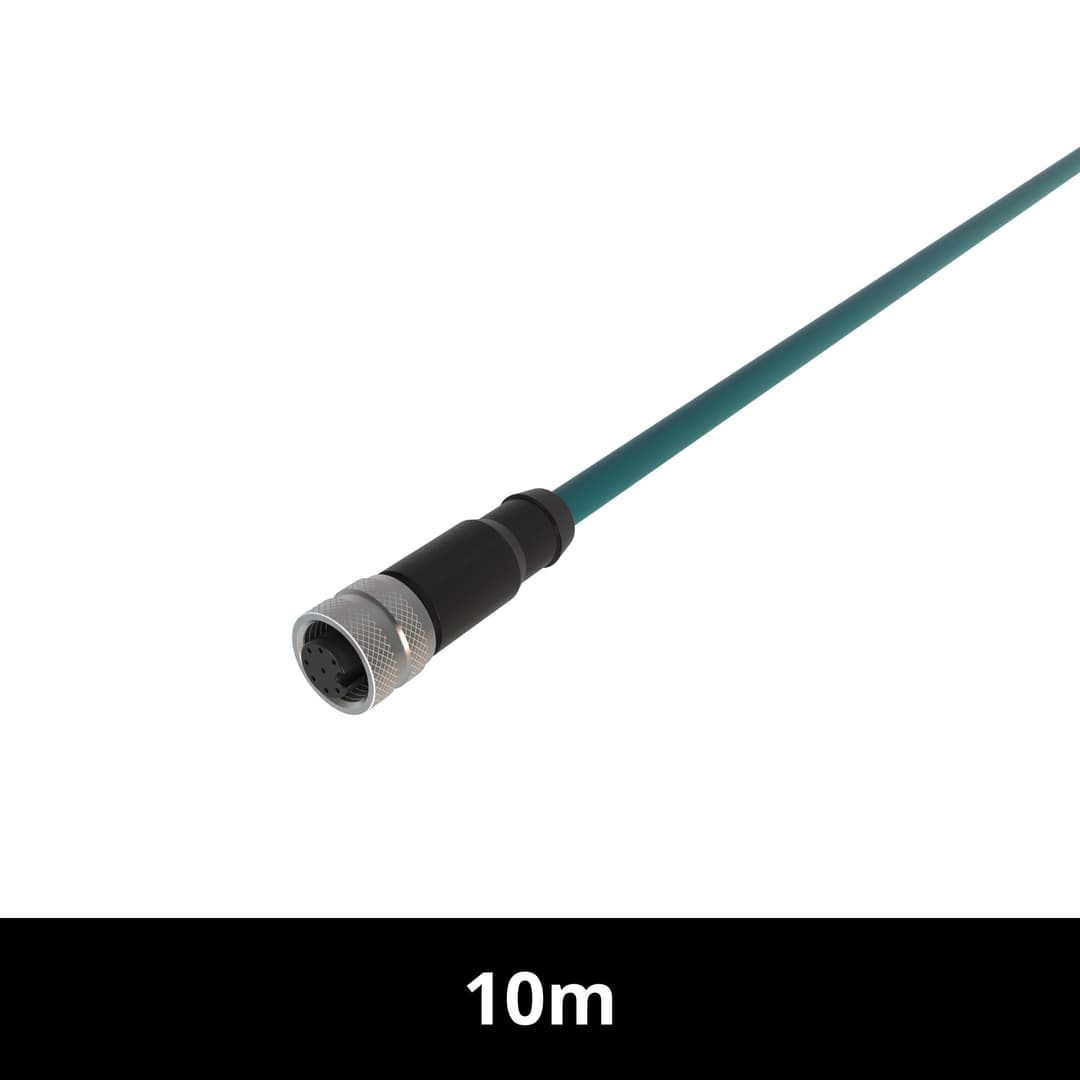

MVC-84901-0102-10 | GigE Vision Cable, M12 8-Pole Female Straight to RJ45, Standard Flex, 10 meter

Part: MVC-84901-0102-10

Length: 10 m

The MVC-84901-0102 series of GigE Vision cables have a M12 8-pole X-Coded female straight connector on the camera end and a standard RJ45 straight plug on the host end.

Product Downloads

Accessories

No accessories available.

Technical Specifications

Dimensions

Cable Length10 m
Product Weight0.72 lbs / 0.327 kg

Product Availability

Stock LocationMVD Stock
Product LifecycleActive
Standard Lead Time1 Days

Temperature Information

Min Operating Temp-20°C / -4°F
Max Operating Temp80°C / 176°F

Connectors Information

Connector AM12 X-Coded 10Gig Female
Connector BRJ45 Straight

Cable Property Information

Cable TypeCAT6 (26AWG x 4P)
Flex TypeStandard Flex

Operation and Performance Information

Voltage30V

Electrical Characteristics Information

Conductor ResistanceN/A
Contact ResistanceN/A

Mechanical Properties Information

Jacket MaterialPVC
Jacket ColorBlack
Insulation MaterialN/A
Connector Insulation MaterialN/A
Contact PlatingN/A
Min. Bending RadiusN/A
Max. Bending Cycles10000000
Plug CyclesN/A
Tensile StrengthN/A
IP RatingIP67

Shipping

Country of OriginChina
