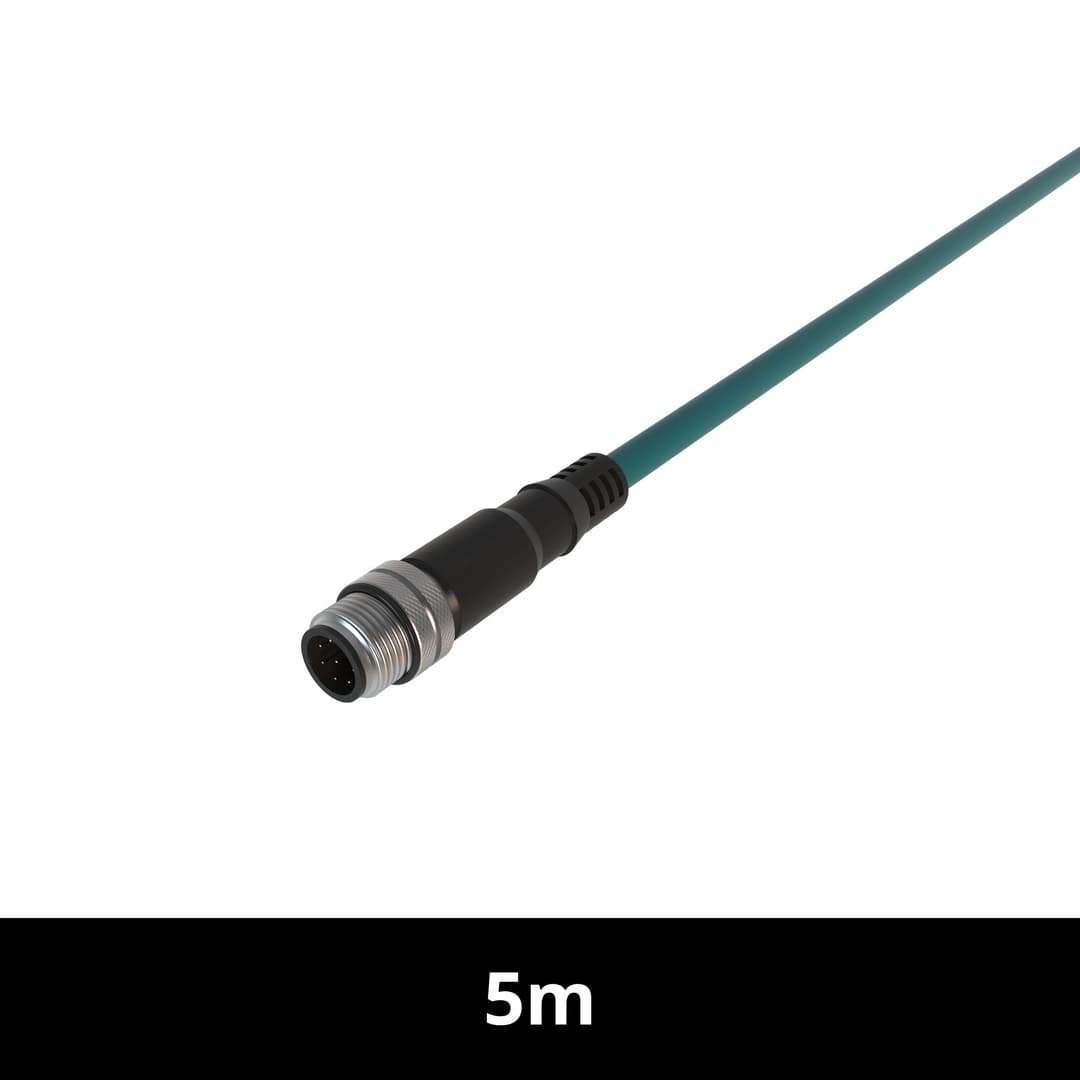

MVC-84901-2001-05 | GigE Vision Cable, M12 8-Pole X-Coded Male Straight to RJ45, Standard Flex, 5 meter
Part: MVC-84901-2001-05
Length: 5 m
The MVC-84901-2001 series of GigE Vision cables have a M12 8-pole X-Coded male straight connector on the camera end and a standard RJ45 straight plug on the host end.
Product Downloads
Accessories
No accessories available.
Technical Specifications
Dimensions
| Cable Length | 5 m |
| Product Weight | 0.36 lbs / 0.163 kg |
Product Availability
| Stock Location | MVD Stock |
| Product Lifecycle | Active |
| Standard Lead Time | 1 Days |
Temperature Information
| Min Operating Temp | -20°C / -4°F |
| Max Operating Temp | 80°C / 176°F |
Connectors Information
| Connector A | M12 X-Coded 10Gig Male |
| Connector B | RJ45 Straight |
Cable Property Information
| Cable Type | CAT6 (26AWG x 4P) |
| Flex Type | Standard Flex |
Operation and Performance Information
| Voltage | 30V |
Electrical Characteristics Information
| Conductor Resistance | N/A |
| Contact Resistance | N/A |
Mechanical Properties Information
| Jacket Material | PVC |
| Jacket Color | Black |
| Insulation Material | N/A |
| Connector Insulation Material | N/A |
| Contact Plating | N/A |
| Min. Bending Radius | N/A |
| Max. Bending Cycles | 10000000 |
| Plug Cycles | N/A |
| Tensile Strength | N/A |
| IP Rating | IP67 |
Shipping
| Country of Origin | China |
