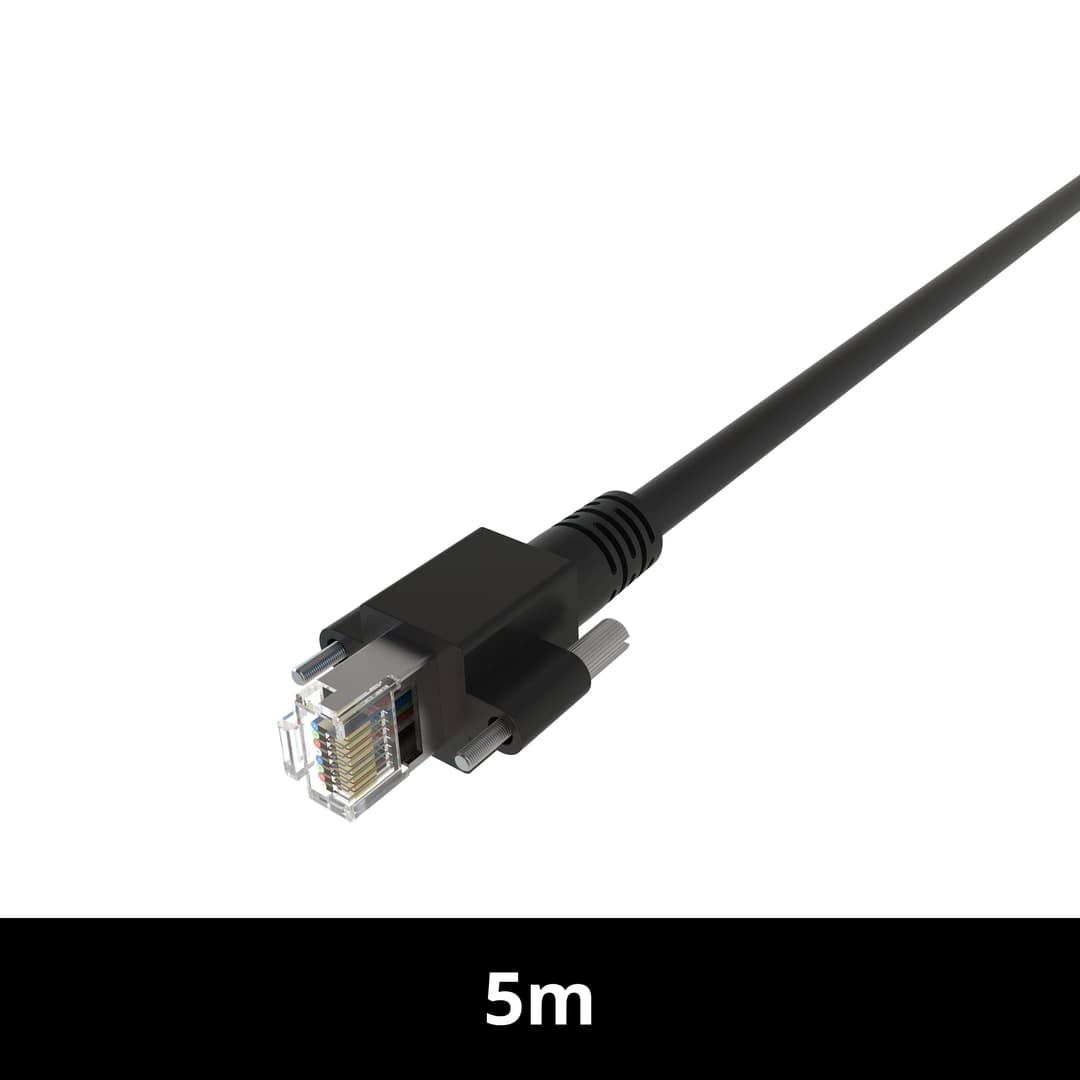

MVC-GE-UDS-RJ45-RJ45-05 | GIgE Vision Cable, RJ45 with Vertical Locking Thumbscrews Straight to RJ45 Straight, Standard Flex, 5 meter
Part: MVC-GE-UDS-RJ45-RJ45-05
Length: 5 m
The MVC-GE-UDS-RJ45-RJ45 series of cables are GigE Vision cables with a locking RJ45 straight connector with vertical thumbscrews on the camera end and a standard RJ45 straight plug on the host end.
Product Downloads
Accessories
No accessories available.
Technical Specifications
Dimensions
| Cable Length | 5 m |
| Product Weight | 0.36 lbs / 0.163 kg |
Product Availability
| Stock Location | MVD Stock |
| Product Lifecycle | Active |
| Standard Lead Time | 1 Days |
Temperature Information
| Min Operating Temp | -20°C / -4°F |
| Max Operating Temp | 80°C / 176°F |
Connectors Information
| Connector A | RJ45 Vertical w/Thumbscrews |
| Connector B | RJ45 Straight |
Pinout Configuration
| Pinout Data | Pin 1: White/Orange / Pin 1; Pin 2: Orange / Pin 2; Pin 3: White/Green / Pin 3; Pin 4: Blue / Pin 4; Pin 5: White/Blue / Pin 5; Pin 6: Green / Pin 6; Pin 7: White/Brown / Pin 7; Pin 8: Brown / Pin 8 |
Cable Property Information
| Cable Type | CAT6 (26AWG x 4P) |
| Flex Type | Standard Flex |
Operation and Performance Information
| Voltage | 30V |
Electrical Characteristics Information
| Conductor Resistance | N/A |
| Contact Resistance | N/A |
Mechanical Properties Information
| Jacket Material | PVC |
| Jacket Color | Black |
| Insulation Material | N/A |
| Connector Insulation Material | PVC |
| Contact Plating | N/A |
| Min. Bending Radius | N/A |
| Max. Bending Cycles | 15000000 |
| Plug Cycles | N/A |
| Tensile Strength | N/A |
| IP Rating | N/A |
Shipping
| Country of Origin | China |
