MVC-IO-6PF-10 | I/O Cable, 6P HRS Female Straight Plug (HR10A-7P-6S) to Flying Lead, Standard Flex, 10 Meters
Part: MVC-IO-6PF-10
Length: 10 m

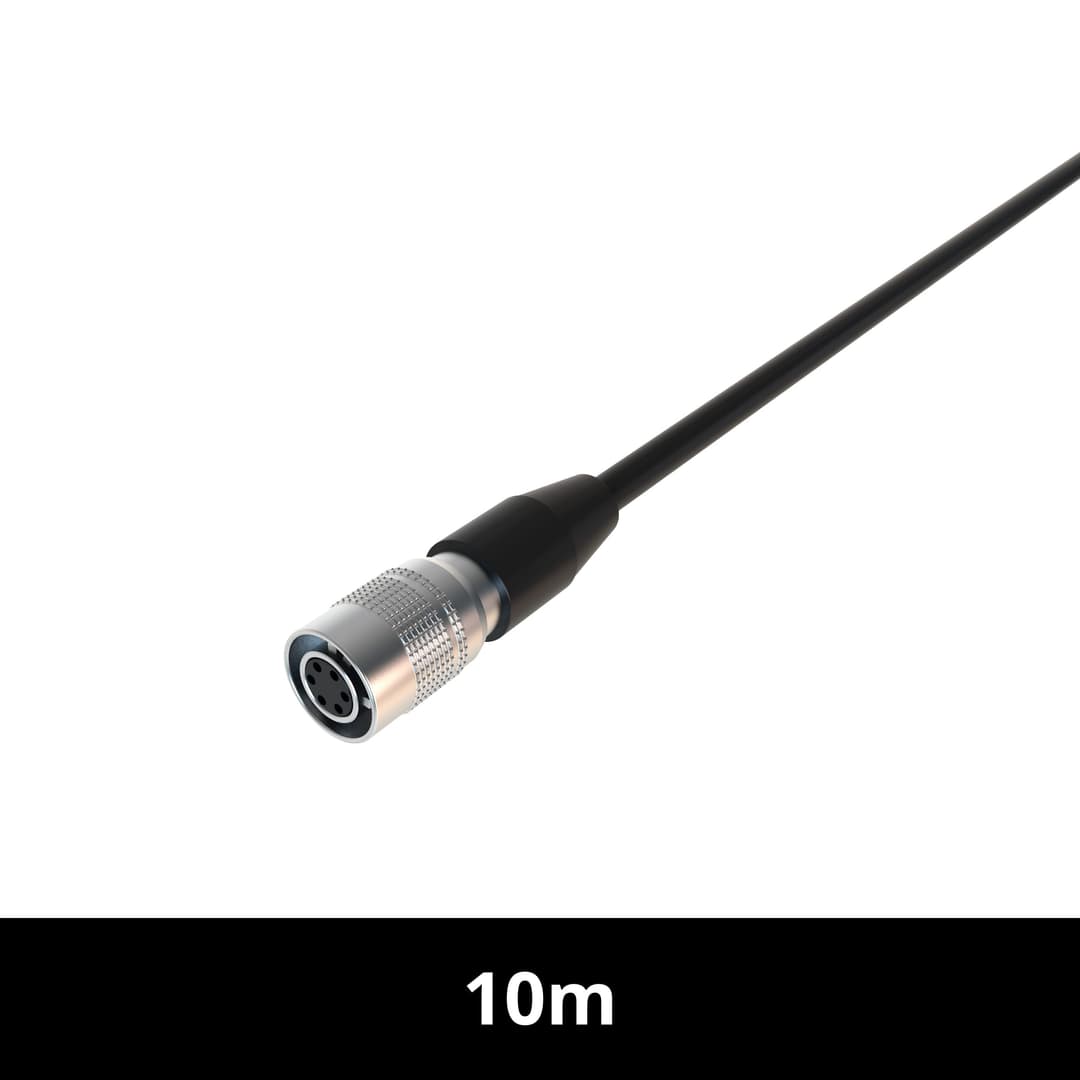

The MVC-IO-6PF I/O cables have a 6-pin HRS HR10A-7P-6S female straight connector on one end, with flying leads on the other. For us with machine vision cameras as well as industrial sensors and instrumentation.
Product Downloads
Accessories
No accessories available.
Technical Specifications
Dimensions
| Cable Length | 10 m |
| Product Weight | 0.72 lbs / 0.327 kg |
Product Availability
| Stock Location | MVD Stock |
| Product Lifecycle | Active |
| Standard Lead Time | 1 Days |
Temperature Information
| Min Operating Temp | -20°C / -4°F |
| Max Operating Temp | 80°C / 176°F |
Connectors Information
| Connector A | 6 Pin Female Plug HR10A-7P-6S* |
| Connector B | Flying Leads |
Cable Property Information
| Cable Type | 26AWG x 6C I/O |
| Flex Type | Standard Flex |
Operation and Performance Information
| Voltage | 300V |
Electrical Characteristics Information
| Conductor Resistance | N/A |
| Contact Resistance | N/A |
Mechanical Properties Information
| Jacket Material | PVC |
| Jacket Color | Black |
| Insulation Material | N/A |
| Connector Insulation Material | N/A |
| Contact Plating | N/A |
| Min. Bending Radius | N/A |
| Max. Bending Cycles | 5000000 |
| Plug Cycles | N/A |
| Tensile Strength | N/A |
| IP Rating | N/A |
Shipping
| Country of Origin | China |
