MVC-U3-AM-MicroB-S-01 | USB 3.0 Vision Cable, USB Micro-B Straight with Horizontal Locking Thumbscrews to USB-A Straight, Standard Flex, 1 meter
Part: MVC-U3-AM-MicroB-S-01
Length: 1 m

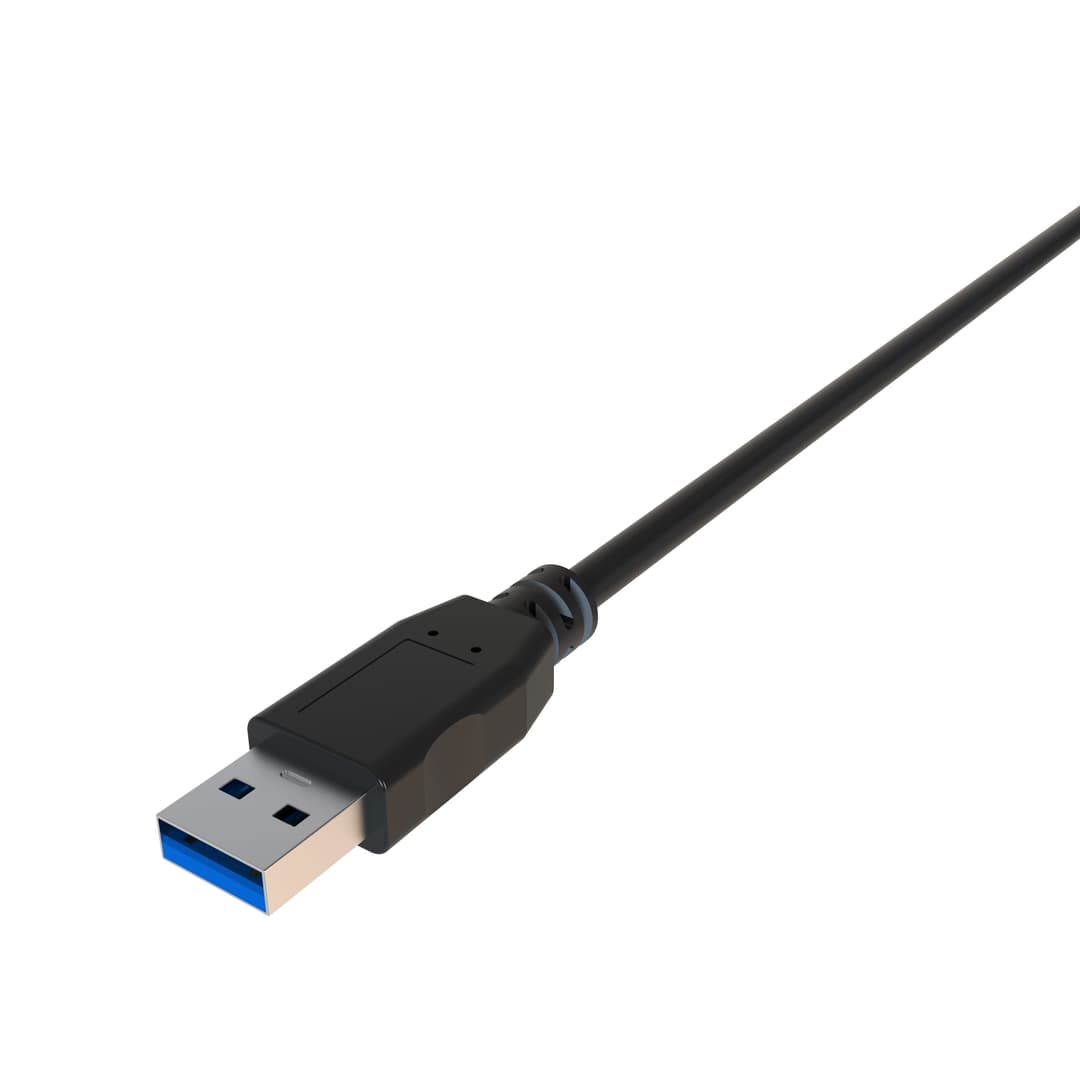

The MVC-U3-AM-Micro B-S series cable is a USB 3.0 Vision cable that combines a locking USB Micro-B straight plug with horizontal thumbscrews and a standard USB-A straight plug. The cable uses standard flex jacketing for reliable performance in fixed and semi-flex industrial installations.
Product Downloads
Accessories
No accessories available.
Technical Specifications
Dimensions
| Cable Length | 1 m |
| Product Weight | 0.22 lbs / 0.1 kg |
Product Availability
| Stock Location | MVD Stock |
| Product Lifecycle | Active |
| Standard Lead Time | 1 Days |
Temperature Information
| Min Operating Temp | -20°C / -4°F |
| Max Operating Temp | 80°C / 176°F |
Connectors Information
| Connector A | USB3 Straight Micro-B w/Thumbscrews |
| Connector B | USB3 Type A |
Cable Property Information
| Cable Type | USB3 Cable |
| Flex Type | Standard Flex |
Operation and Performance Information
| Voltage | 30V |
Electrical Characteristics Information
| Conductor Resistance | N/A |
| Contact Resistance | N/A |
Mechanical Properties Information
| Jacket Material | PVC |
| Jacket Color | Black |
| Insulation Material | N/A |
| Connector Insulation Material | N/A |
| Contact Plating | N/A |
| Min. Bending Radius | N/A |
| Max. Bending Cycles | 10000000 |
| Plug Cycles | N/A |
| Tensile Strength | N/A |
| IP Rating | N/A |
Shipping
| Country of Origin | China |
