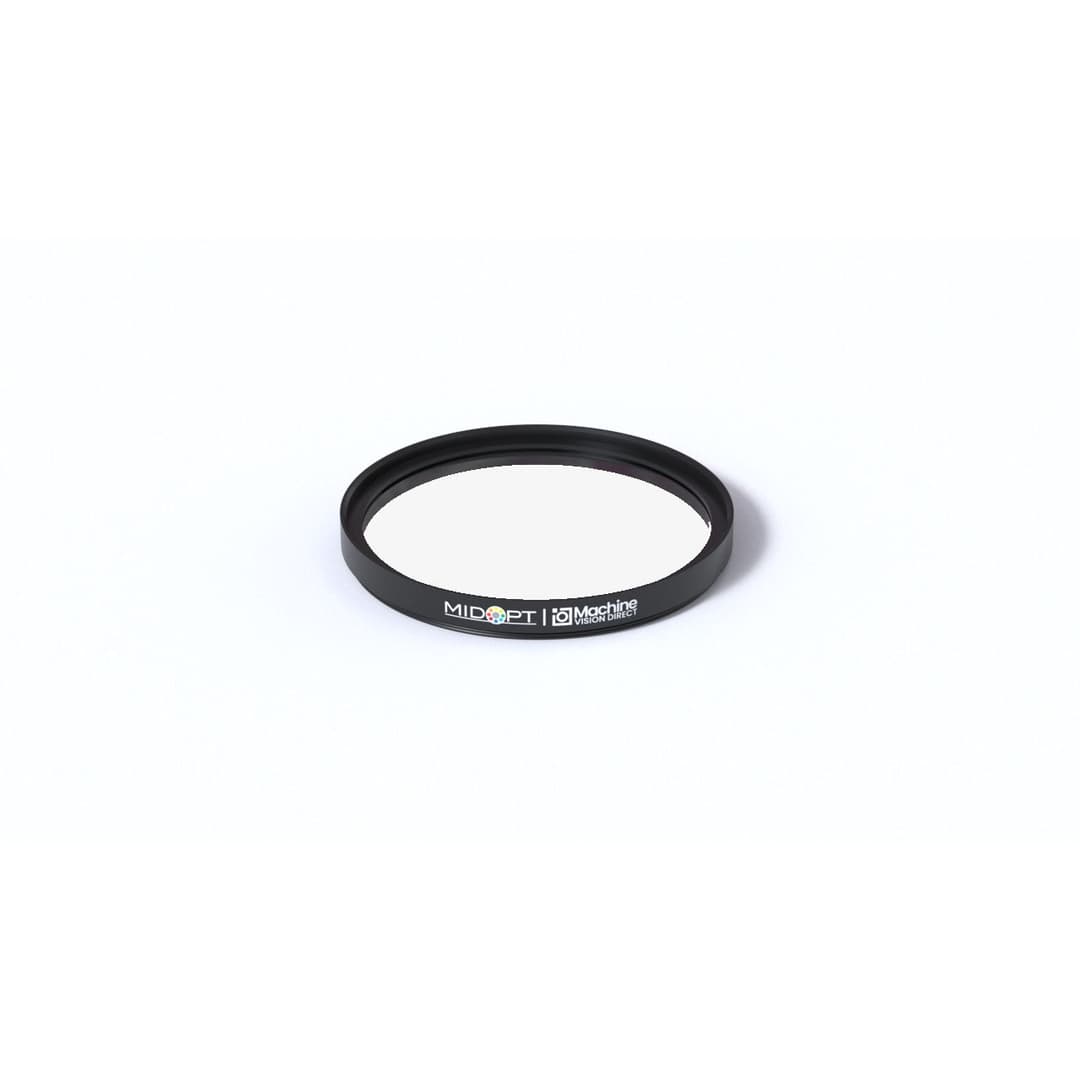

AC385-58 | AC385 Hard-Coated Acrylic Protective Window
Part: AC385-58
Diameter: M58 x P0.75
The MidOpt AC385-58 window is made from a hard-coated, clear, optical-grade, cell-cast acrylic. This material offers the benefits of cell-cast acrylic at a cost similar to that of our antireflection-coated extruded acrylic windows. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 390 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Secondary Useful Range Min | 390 nm |
| Secondary Useful Range Max | 1100 nm |
| Third Useful Range Min | 390 nm |
| Third Useful Range Max | 1100 nm |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 91 % |
| Surface Quality (Scratch-Dig) | 80-50 |
| Substrate Material | Acrylic |
| Filter Diameter | M58 x P0.75 |
Product Availability
| Standard Lead Time | 15 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
Shipping
| Country of Origin | United States |
