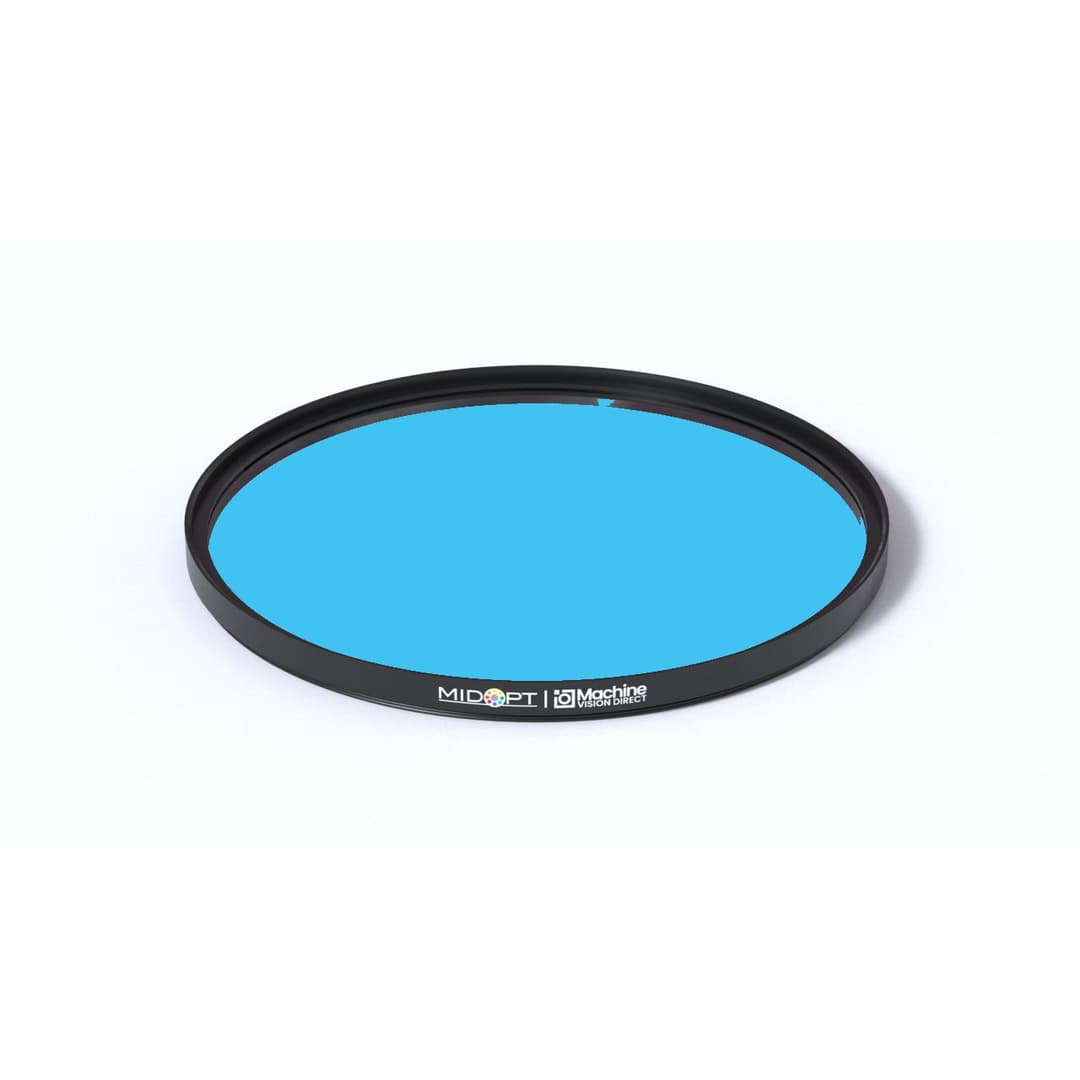

BN470-105 | BN470 Narrow Blue Bandpass Filter

Part: BN470-105

Diameter: M105 x P1.0

The MidOpt BN470-105 is commonly used in fluorescence applications. A BN470 filter is suitable for LED or laser diode applications with higher-than-normal ambient lighting conditions and is less sensitive to angle-of-incidence variations than traditional interference filters. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min460 nm
Useful Range Max490 nm
StabledgeYes
FWHM45 nm
Adhesive BackedYes
Tolerance7 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM105 x P1.0

Product Availability

Standard Lead Time15 Days
Stock LocationBuilt to Order
Product LifecycleActive

Shipping

Country of OriginUnited States
