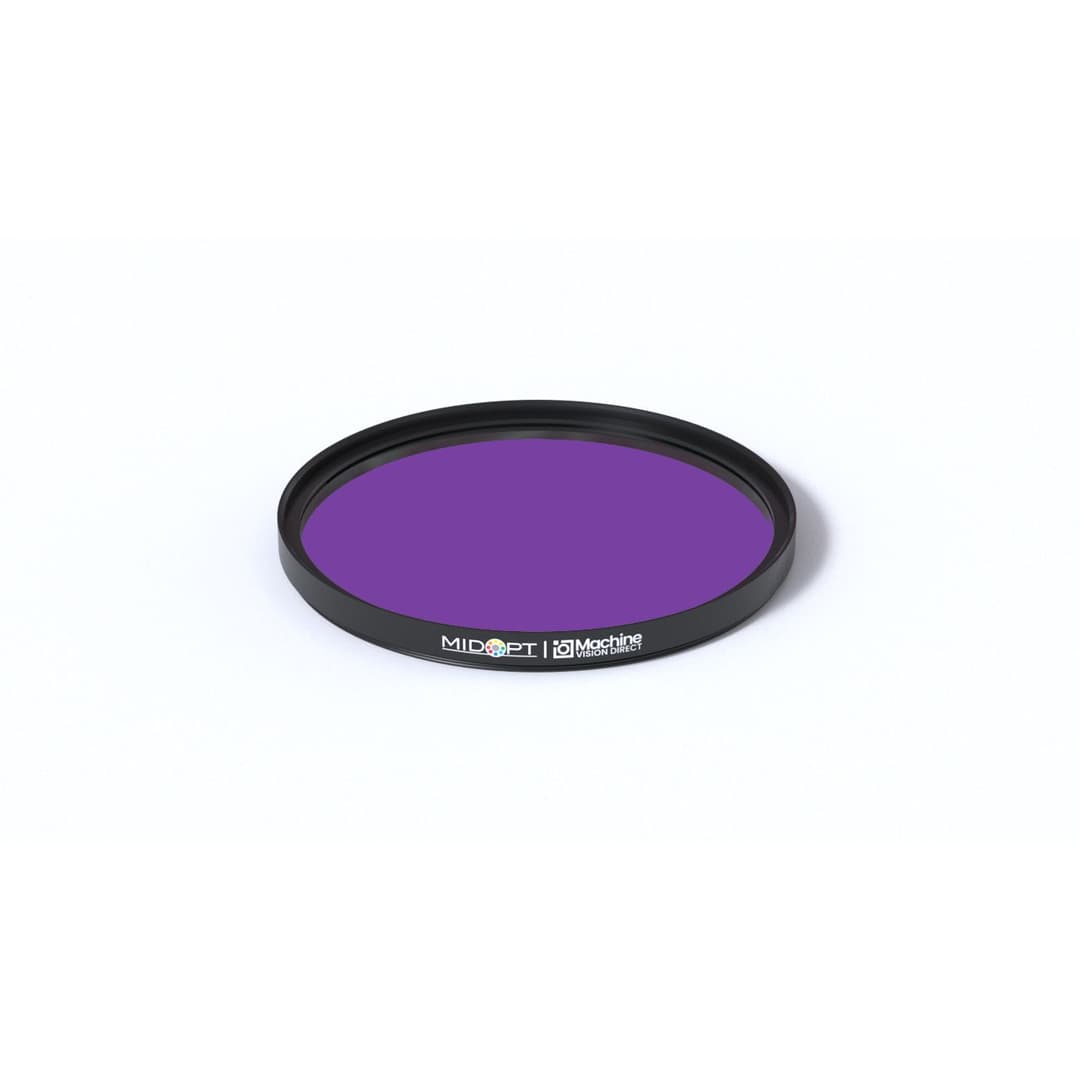

BP450-77 | BP450 Indigo Bandpass Filter

Part: BP450-77

Diameter: M77 x P0.75

The MidOpt BP450-77 filter enhances the viewing of subjects illuminated by a 450nm blue LED or laser light source and any UV-excited blue fluorescence emissions (420-470nm). Its broad bandwidth and high peak transmission (T ≥90%) result in significantly brighter, higher-contrast images. For most machine vision UV fluorescence applications, a Bandpass filter is absolutely necessary.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min425 nm
Useful Range Max470 nm
StabledgeYes
FWHM60 nm
Adhesive BackedYes
Tolerance10 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM77 x P0.75

Product Availability

Standard Lead Time15 Days
Stock LocationBuilt to Order
Product LifecycleActive

Shipping

Country of OriginUnited States
