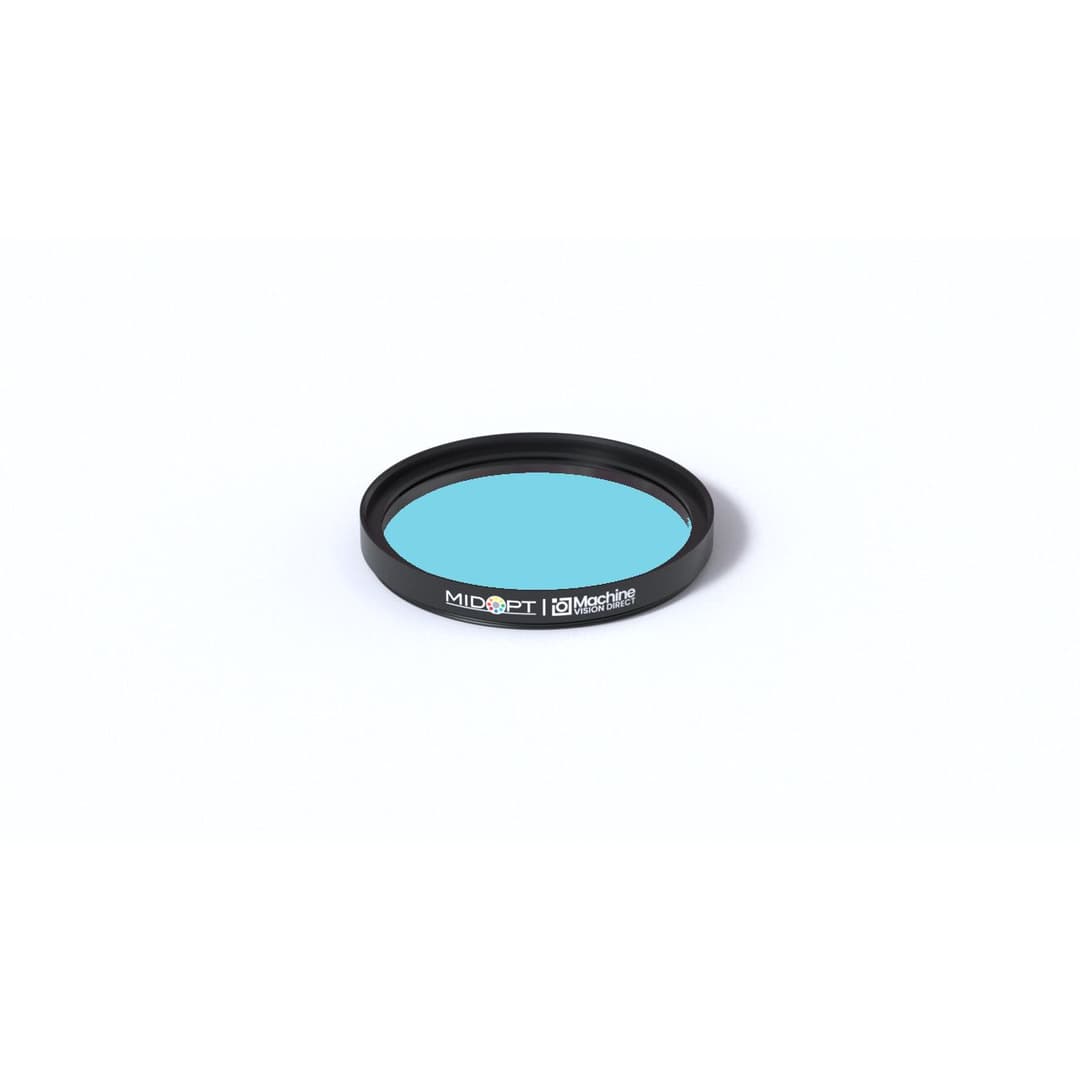

BP485-52 | BP485 Absorptive Visible Bandpass/Near-IR Block Filter

Part: BP485-52

Diameter: M52 x P0.75

The MidOpt BP485-52 is commonly used as an internal infrared blocking filter in cameras. When working with any camera that has had its internal filter removed, a mounted BP485 filter can also be considered, which, when desired, allows it to work like the unmodified camera. BP485 is A/R coated on both sides, and its spectral response in the blue portion of the spectrum is excellent compared to other absorptive IR blocking filters.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min380 nm
Useful Range Max585 nm
StabledgeYes
FWHM285 nm
Adhesive BackedYes
Tolerance10 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM52 x P0.75

Product Availability

Standard Lead Time15 Days
Stock LocationBuilt to Order
Product LifecycleActive

Shipping

Country of OriginUnited States
