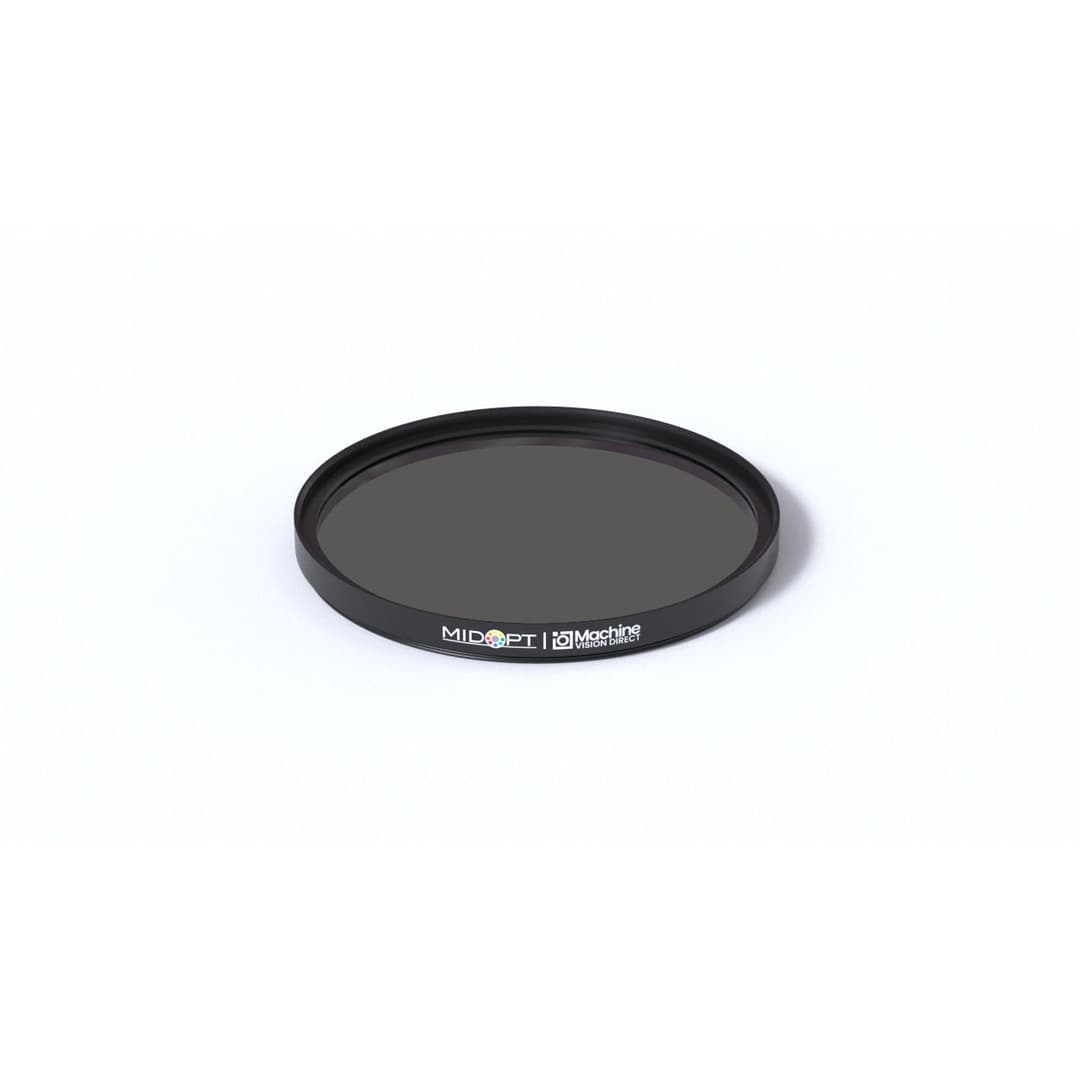

BP850-72 | BP850 Near-IR Bandpass Filter

Part: BP850-72

Diameter: M72 x P0.75

The MidOpt BP850-72 is recommended for high-power 830-850nm LED or laser diode lighting to improve contrast in surveillance applications or for infrared inspection. This filter features high peak transmission and particularly durable, robust coatings. This filter’s coated surface also greatly inhibits staining, unlike uncoated infrared filters, which are affected by year-round issues with heat, humidity, and/or air quality. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min820 nm
Useful Range Max910 nm
StabledgeYes
FWHM160 nm
Adhesive BackedYes
Tolerance10 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM72 x P0.75

Product Availability

Standard Lead Time15 Days
Stock LocationBuilt to Order
Product LifecycleActive

Shipping

Country of OriginUnited States
