Midwest Optical Systems

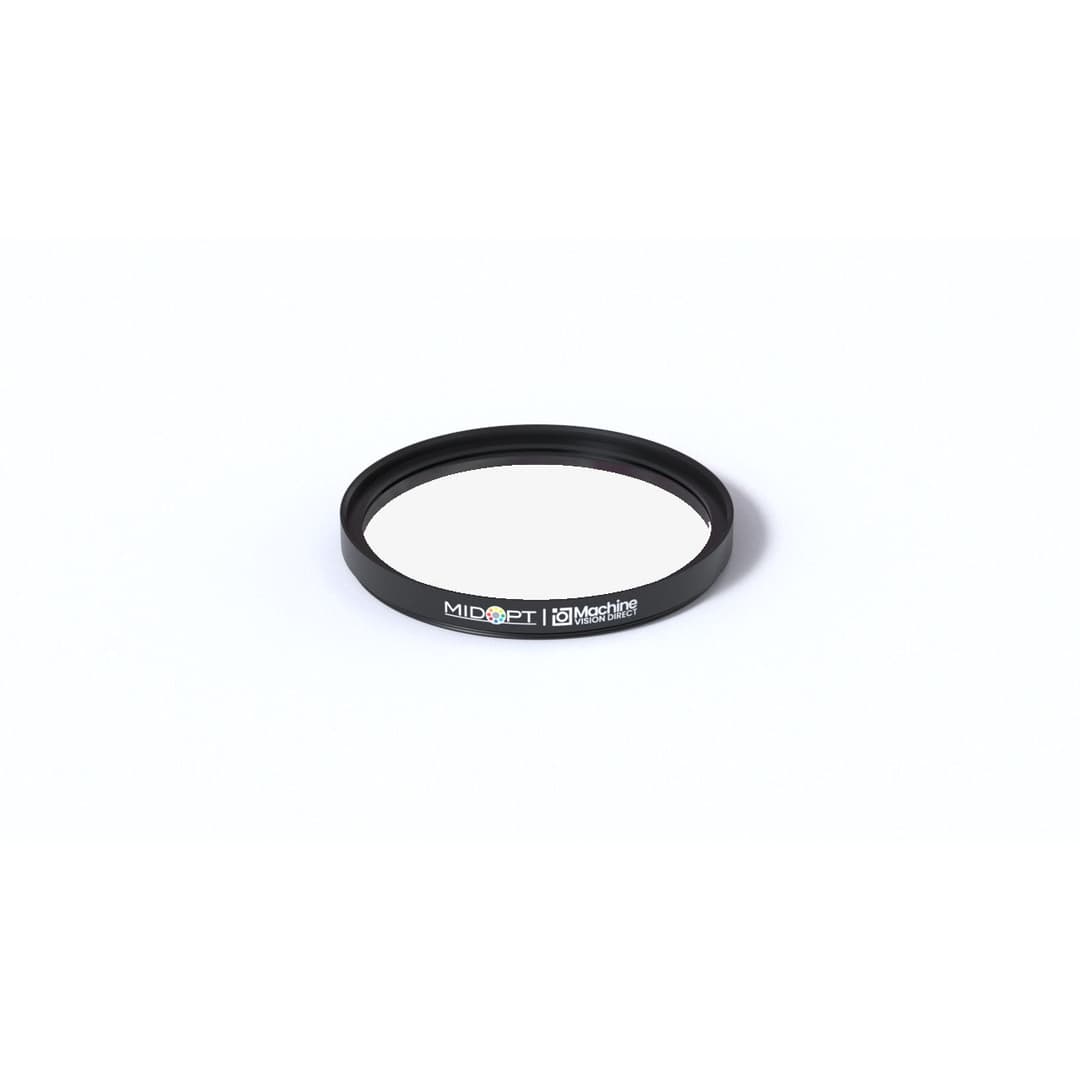

LP330-58 | LP330 Industrial-Grade Glass Protective Window
Part: LP330-58
Diameter: M58 x P0.75
The MidOpt LP330-58 protective window is the lowest-cost alternative for dust covers or protection of optical components. No anti-reflection coatings are provided; parallelism and surface quality are excellent. A slight reduction in infrared and deep red transmission may also be associated with the LP330. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 350 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M58 x P0.75 |
Product Availability
| Standard Lead Time | 15 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
Shipping
| Country of Origin | United States |
