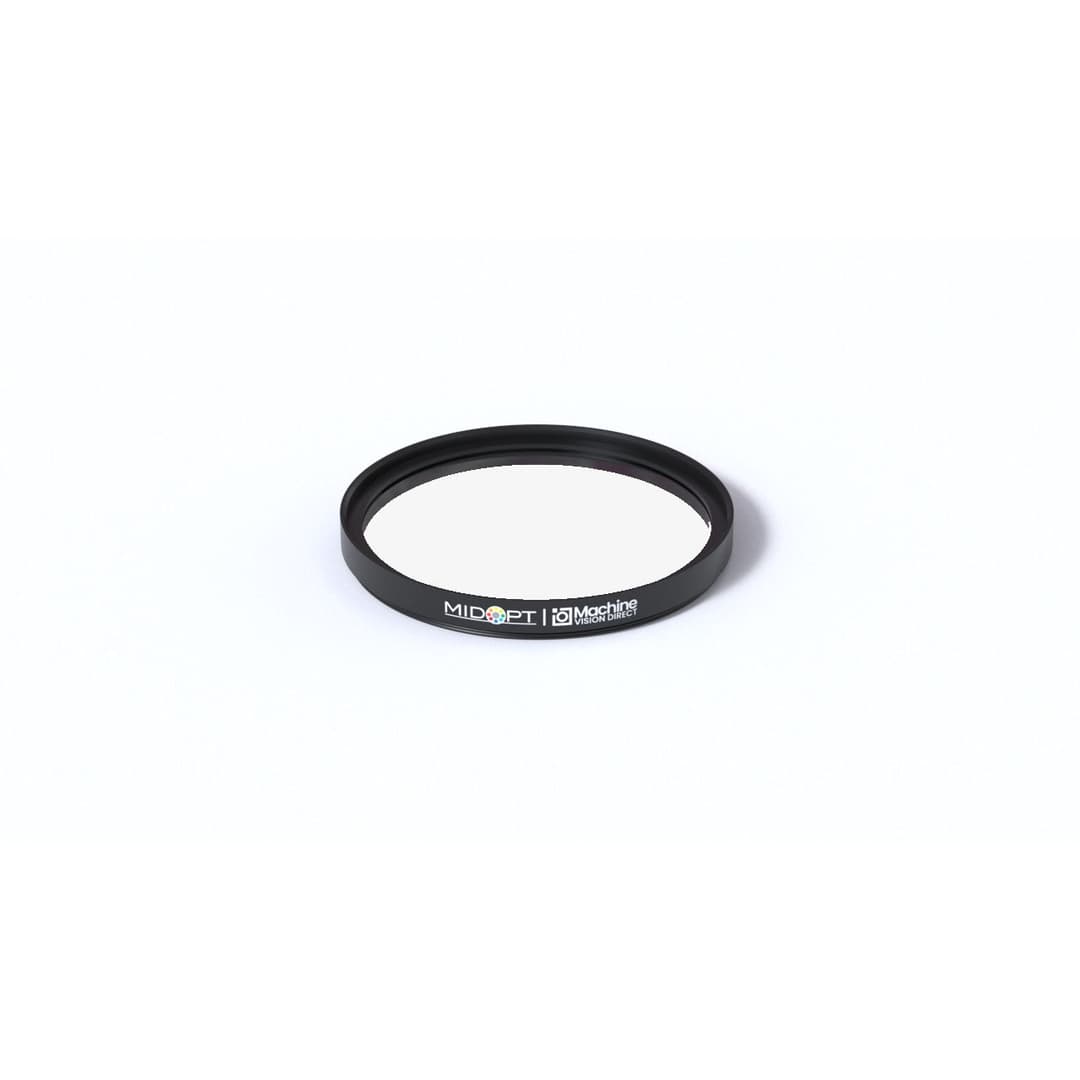

LP341-62 | LP341 Industrial-Grade Oleophobic VIS A/R Coated Glass Protective Window
Part: LP341-62
Diameter: M62 x P0.75
The MidOpt LP341-62 filter is similar to LP340 antireflection-coated protective windows, except that it has the added advantage of an oleophobic coating on one side. They are offered in 1mm or 2 mm thickness. The oleophobic (anti-smudge) coating repels fingerprints, oils, and moisture buildup, making cleaning much easier. Frequent, uncontrolled rubbing during attempts to clean deposits or debris from the front surface of a lens often causes scratching or pitting, resulting in loss of transmission and image clarity. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 365 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Peak Transmission | ≤ 98 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M62 x P0.75 |
Product Availability
| Standard Lead Time | 15 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
Shipping
| Country of Origin | United States |
