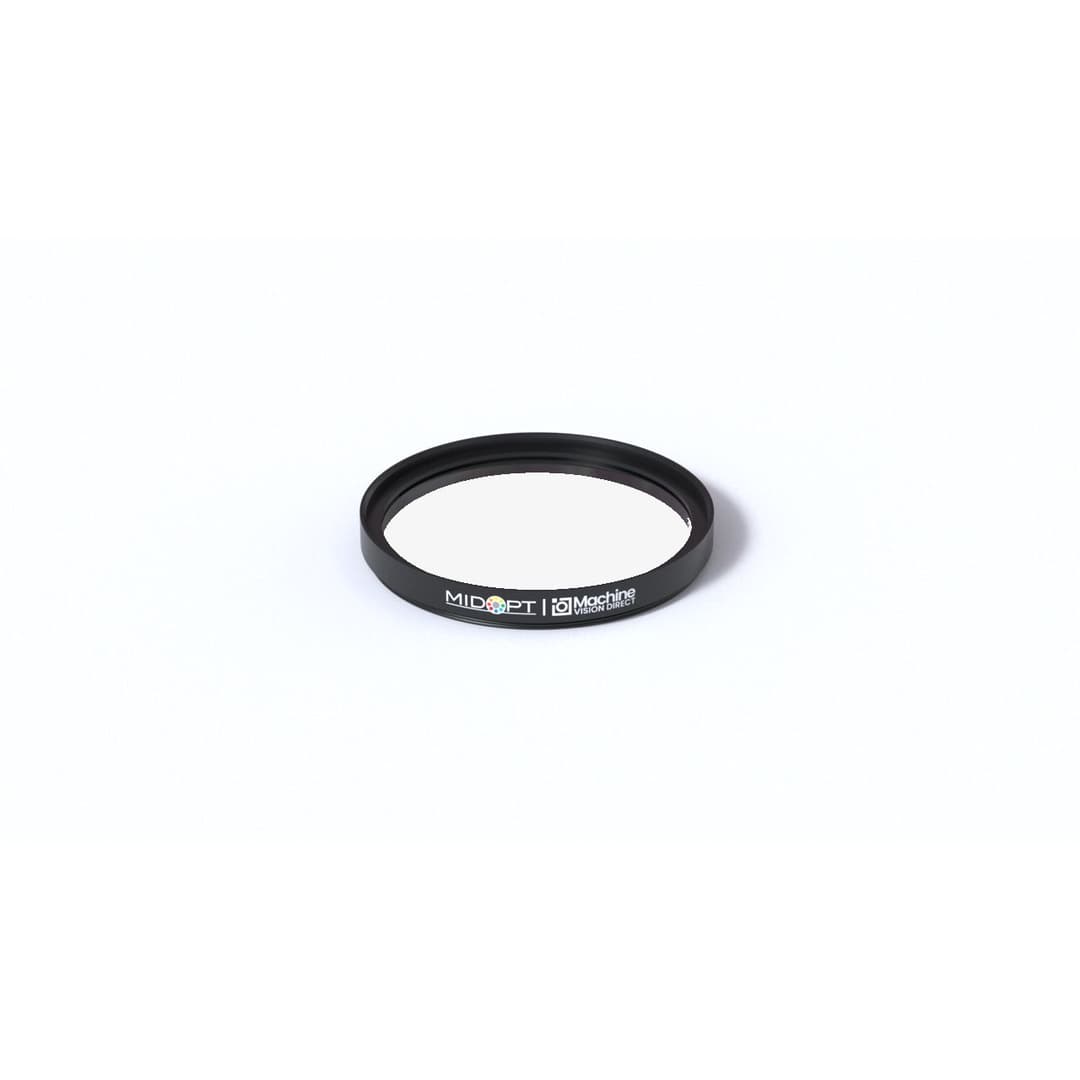

LP347-52 | LP347 Near-IR A/R Coated Glass Protective Window

Part: LP347-52

Diameter: M52 x P0.75

The MidOpt LP347-52 NIR window is an anti-reflection-coated window specifically optimized for near-infrared transmission while allowing visible light to pass. These windows are made of optically ground, polished, and coated B270 crown glass and are commonly used as protective cover glasses for cameras used in surveillance, LPR/ANPR, and security applications that operate primarily in the dark with the aid of infrared light sources. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min690 nm
Useful Range Max1090 nm
StabledgeYes
Adhesive BackedYes
Tolerance15 %
Peak Transmission≤ 99 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialClear Glass
Filter DiameterM52 x P0.75

Product Availability

Standard Lead Time15 Days
Stock LocationBuilt to Order
Product LifecycleActive

Shipping

Country of OriginUnited States
