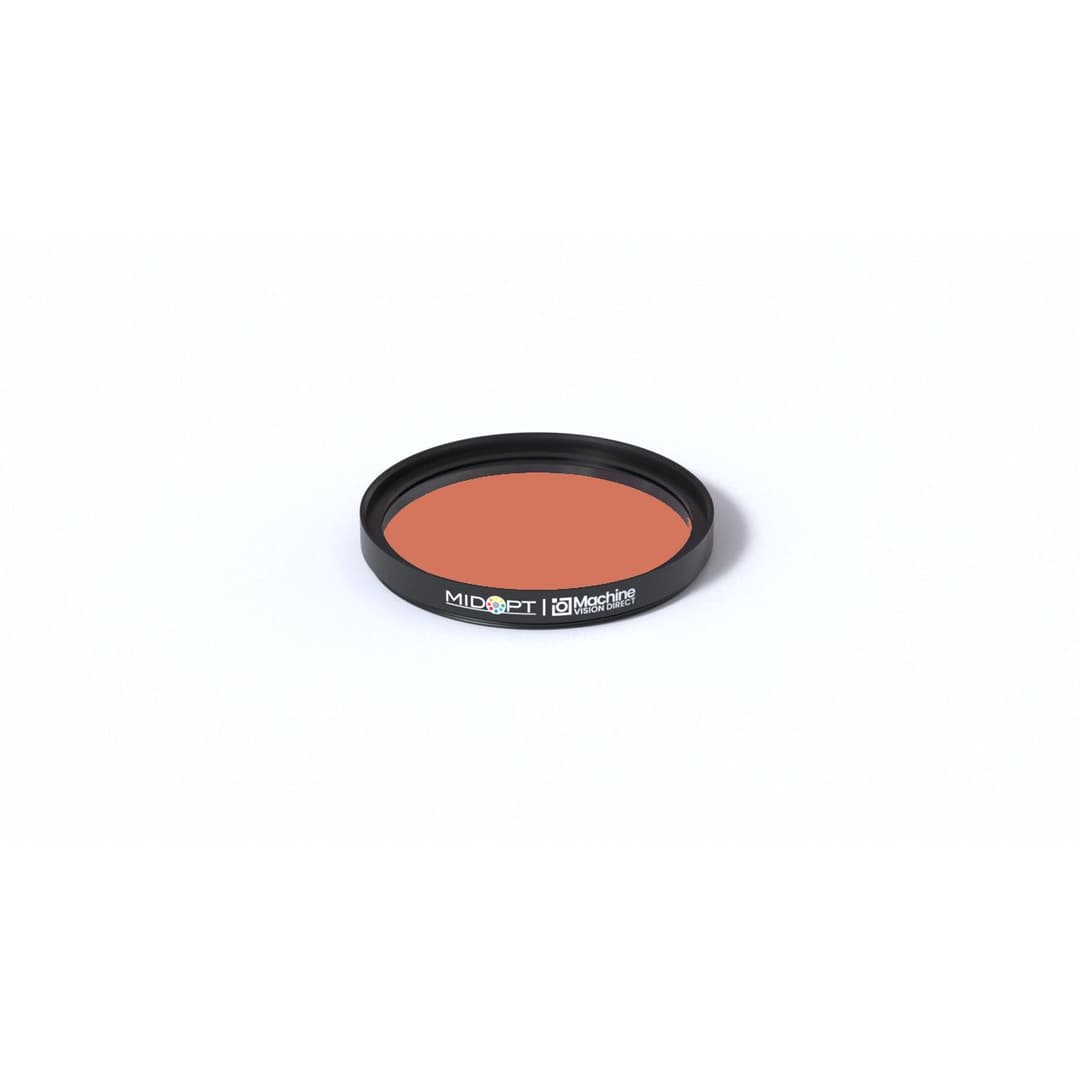

LP550-52 | LP550 Orange Longpass Filter
Part: LP550-52
Diameter: M52 x P0.75
The MidOpt LP550-52 is normally used only in monochrome applications. LP550 filters block UV and shorter visible light wavelengths and pass orange, red, and near-IR light. To block longer wavelengths, including infrared, wavelengths that your camera might be sensitive to, see our BP595 Bandpass filter option. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 560 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M52 x P0.75 |
Product Availability
| Standard Lead Time | 15 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
Shipping
| Country of Origin | United States |
