Midwest Optical Systems

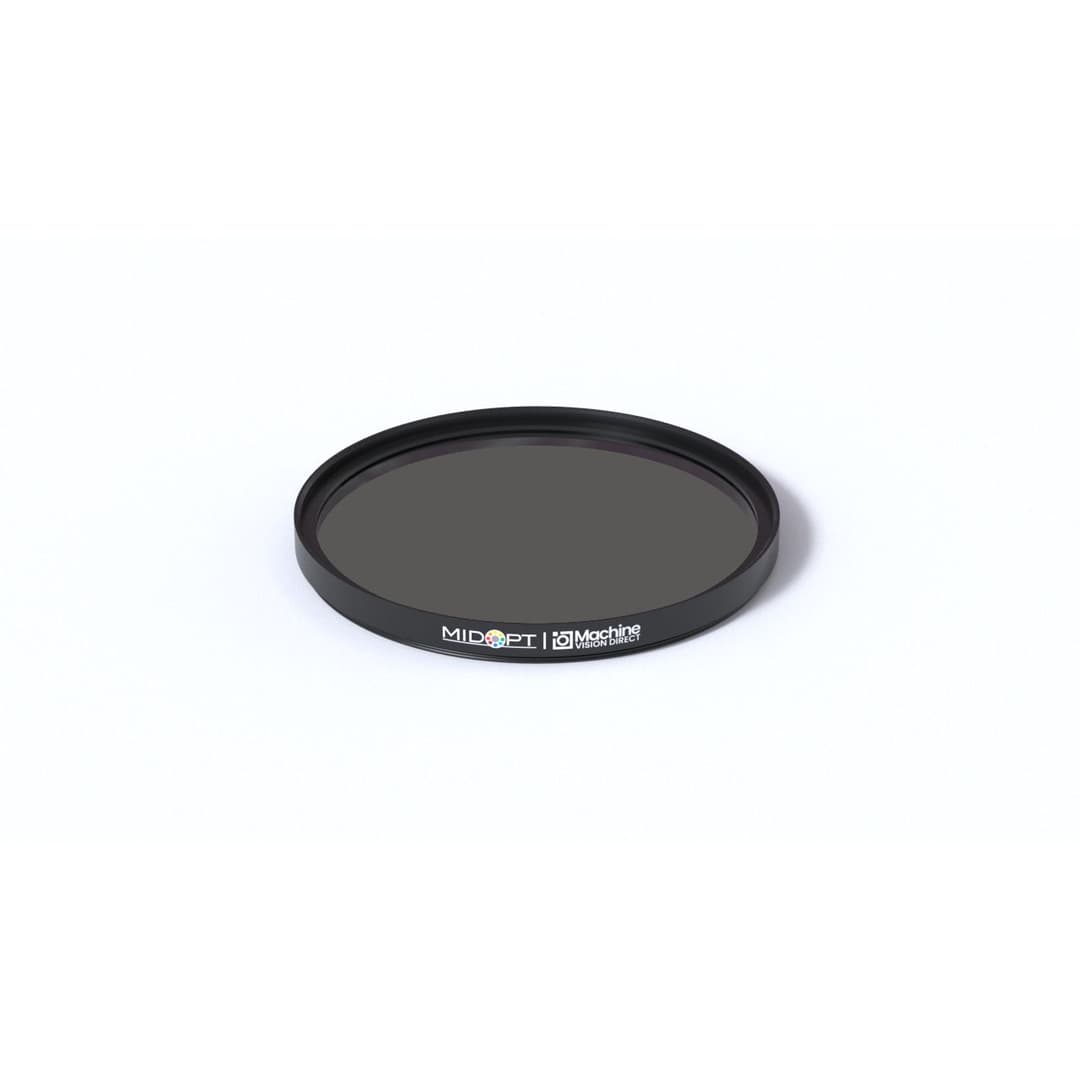

LP815-72 | LP815 Near-IR Longpass Filter
Part: LP815-72
Diameter: M72 x P0.75
The MidOpt LP815-72 blocks wavelengths below 815nm and has a useful range of 825nm to 1100nm. Available in various mounts for use in machine vision systems and more. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 825 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M72 x P0.75 |
Product Availability
| Standard Lead Time | 15 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
Shipping
| Country of Origin | United States |
