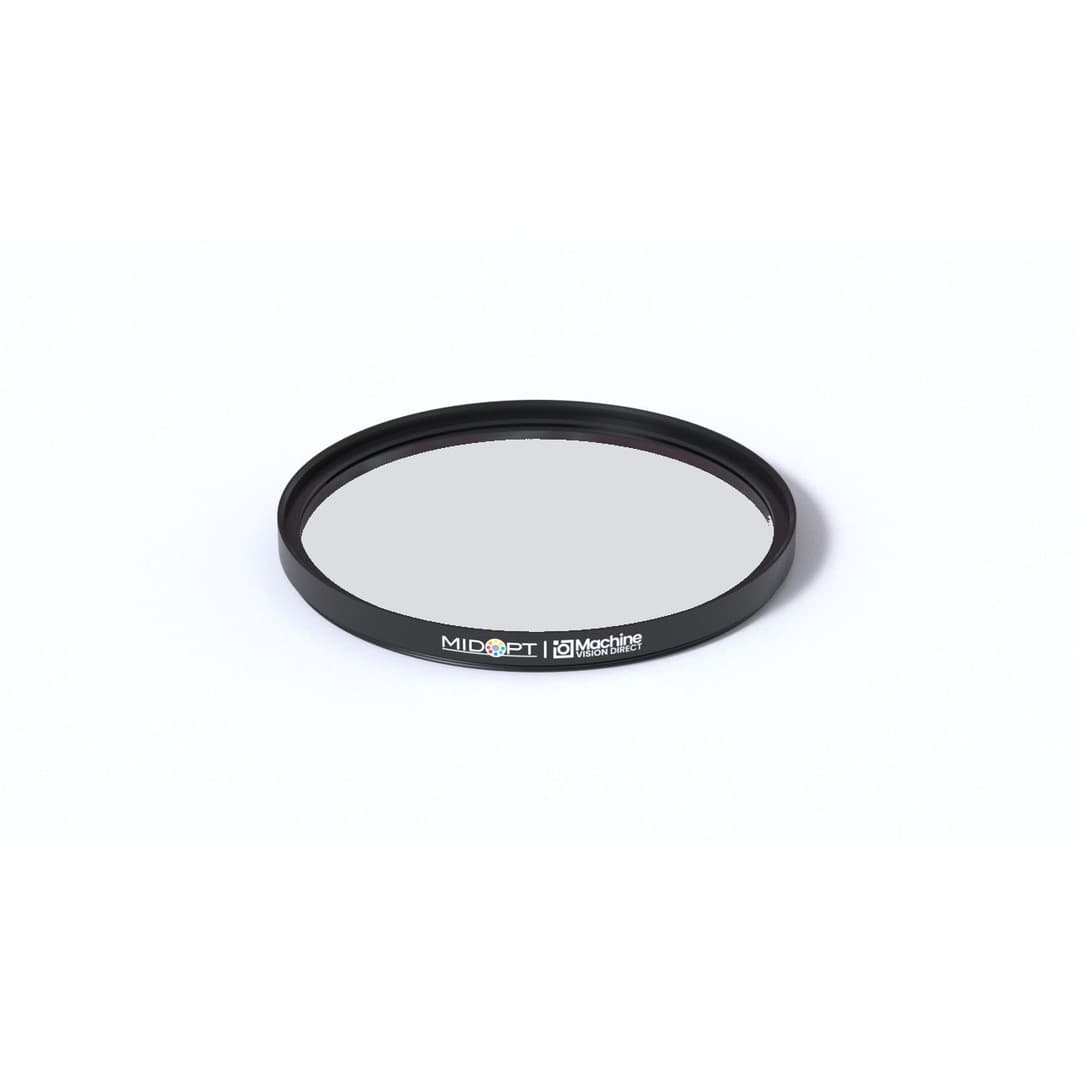

ND030-77 | ND030 Neutral Density Filter - Absorptive 50% Transmission

Part: ND030-77

Diameter: M77 x P0.75

The MidOpt ND030-77 is an absorptive neutral-density filter with an optical density of 0.3, or an average 50% transmission across the visible spectrum. These filters have identical male and female threads on both ends, allowing them to be stacked with other ND filters to achieve various optical densities. For example, two ND030 filters stacked together would perform approximately the same as one ND060 filter. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min425 nm
Useful Range Max675 nm
StabledgeN/A
Adhesive BackedYes
Tolerance5 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM77 x P0.75

Product Availability

Standard Lead Time15 Days
Stock LocationBuilt to Order
Product LifecycleActive

Shipping

Country of OriginUnited States
