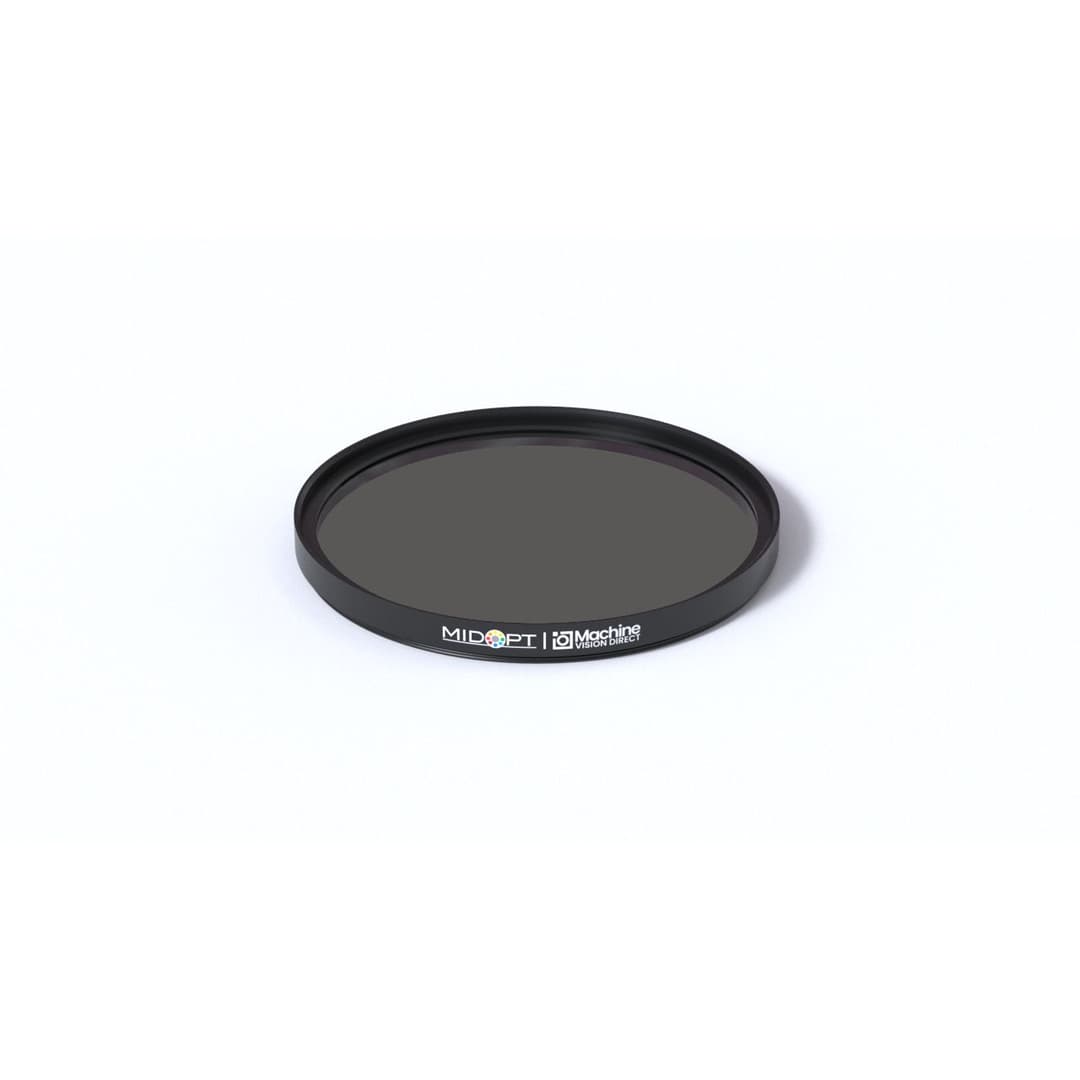

Ni200-72 | Ni200 Neutral Density Filter - Reflective 1% Transmission
Part: Ni200-72
Diameter: M72 x P0.75
The MidOpt Ni200-72 neutral density filter can be used to reduce the amount of light reaching the camera to an average of about 1% transmission, allowing longer exposure times that result in reduced depth of field. This improves the separation of subject matter from the foreground and/or background. These filters have identical male and female threads on both ends, allowing them to be stacked with other ND filters to achieve various optical densities. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 400 nm |
| Useful Range Max | 2000 nm |
| Stabledge | N/A |
| Adhesive Backed | Yes |
| Tolerance | 0.15 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M72 x P0.75 |
Product Availability
| Standard Lead Time | 15 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
Shipping
| Country of Origin | United States |
