Midwest Optical Systems

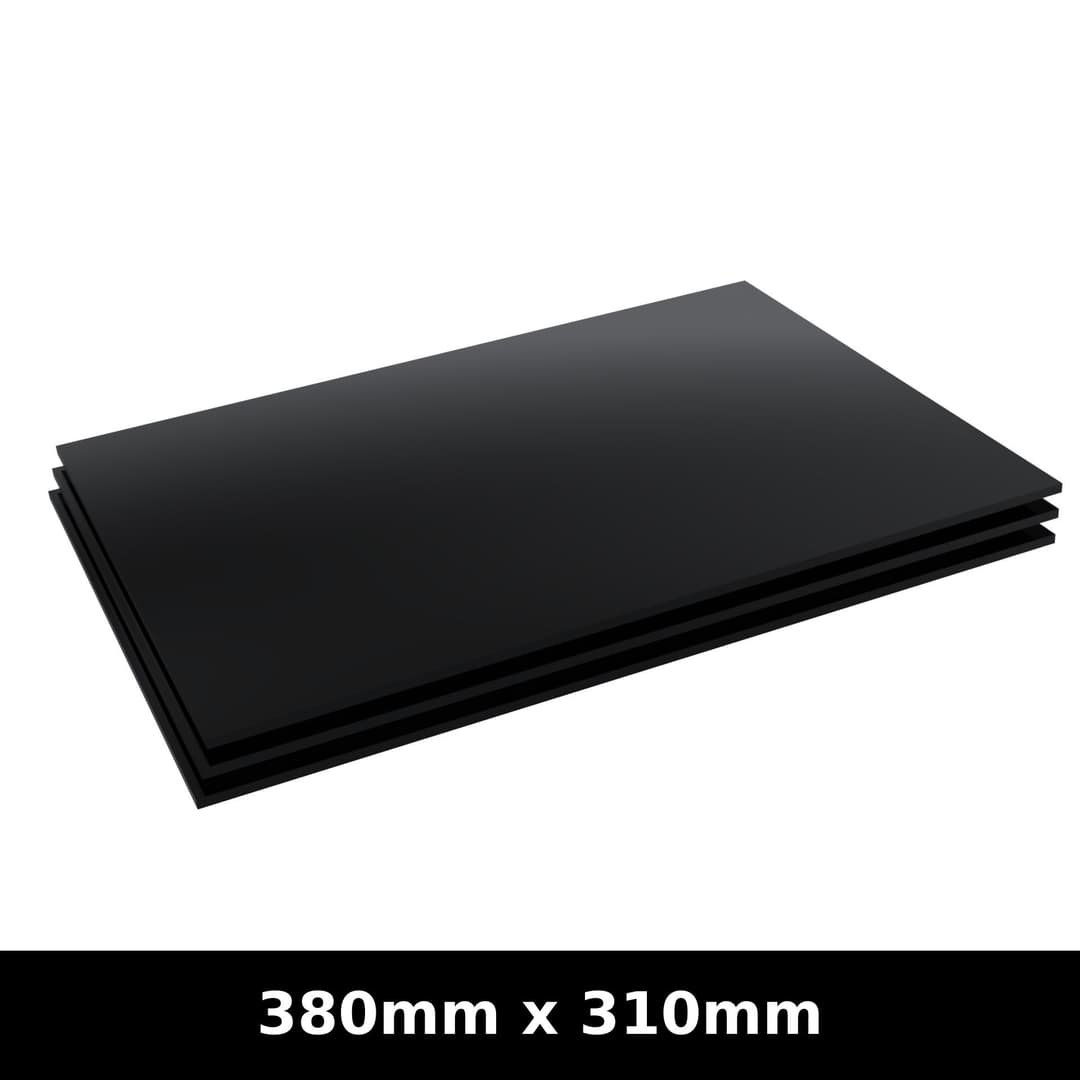

PA371-380x310 | PA371 Ultra-High Contrast Oleophobic Coated Acrylic Linear Polarizer
Part: PA371-380x310
Diameter: 380x310
The MidOpt PA371-380x310 is an economical polarizer that offers unmatched glare extinction and greater durability than polarizing films. They are laminated to a single piece of acrylic and intended for applications where the external surface must be exposed to potentially harsh conditions, while the internal surface is naturally protected. Appropriate examples include lighting applications, rotating polarizers threaded onto the front of lenses, and polarizers that are mounted in camera enclosures. PA371 sheet material is routinely laser cut to any desired custom shape, size, and mounting configuration. These polarizers utilize our HT008 polarizing film and are offered in 1.2mm thickness. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 400 nm |
| Useful Range Max | 700 nm |
| Stabledge | No |
| Adhesive Backed | Yes |
| Surface Quality (Scratch-Dig) | N/A |
| Substrate Material | Acrylic |
| Filter Diameter | 380x310 |
Product Availability
| Standard Lead Time | 15 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
Shipping
| Country of Origin | United States |
