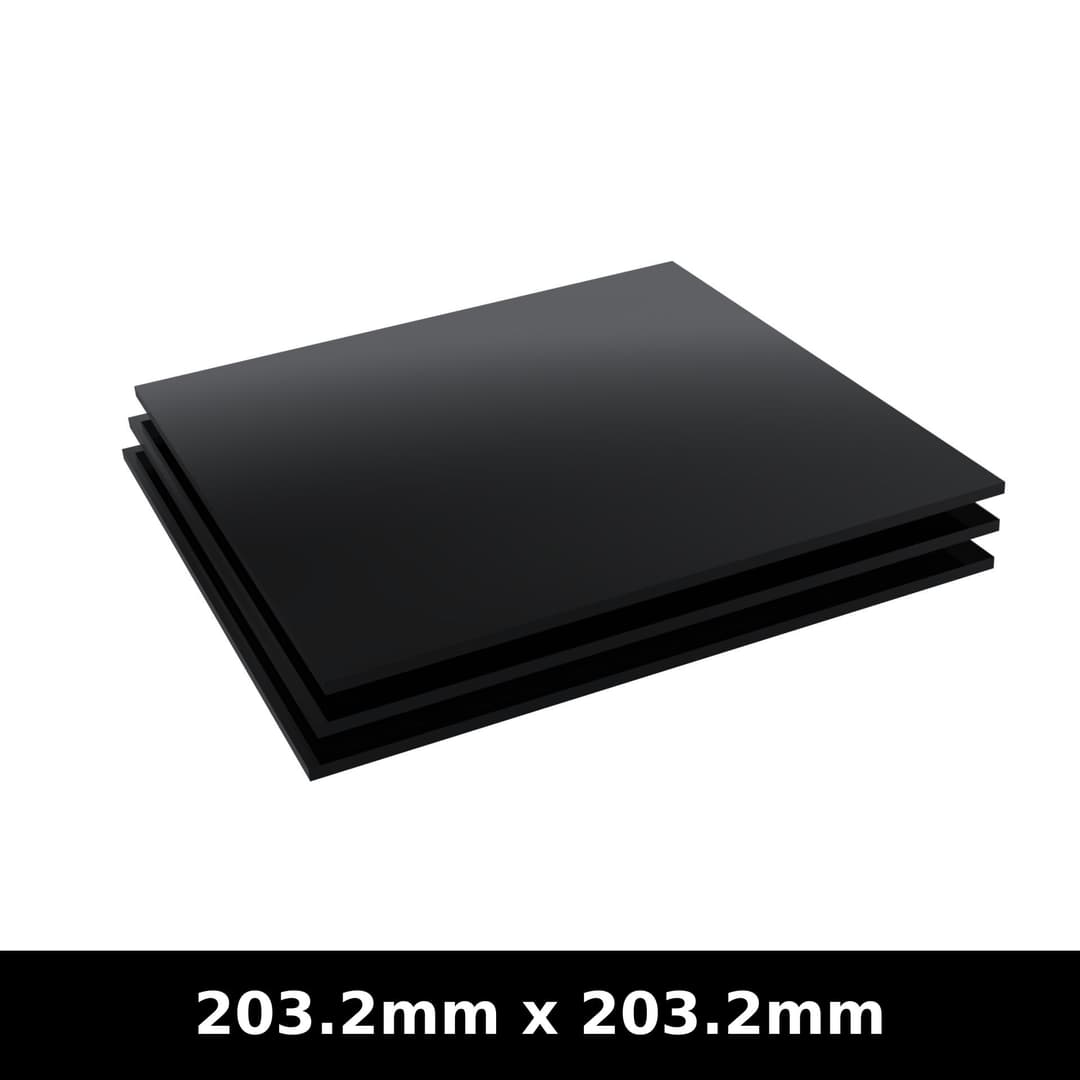

PA385-203.2x203.2 | PA385 Ultra-High Contrast Cell Cast Acrylic Linear Polarizer

Part: PA385-203.2x203.2

Diameter: 203.2x203.2

The MidOpt PA385-203.2x203.2 is a highly economical hard-coated polarizer that offers excellent glare reduction and greatly increased durability compared to polarizing films. They are laminated to a single piece of cell-cast acrylic and intended for applications where the external surface must be exposed to potentially harsh conditions, while the internal surface is naturally protected. Appropriate examples include lighting applications, rotating polarizers threaded onto the front of lenses, and polarizers that are mounted in camera enclosures. Cell cast acrylic is isotropic, harder, more chemically resistant, and more pliable compared to extruded acrylic. PA385 sheet material is routinely laser cut to any desired custom shape, size and mounting configuration. These polarizers utilize our HT008 polarizing film and are offered in 1.7mm and 2.2mm thicknesses. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min400 nm
Useful Range Max700 nm
StabledgeNo
Adhesive BackedYes
Surface Quality (Scratch-Dig)N/A
Substrate MaterialAcrylic
Filter Diameter203.2x203.2

Product Availability

Standard Lead Time15 Days
Stock LocationBuilt to Order
Product LifecycleActive

Shipping

Country of OriginUnited States
