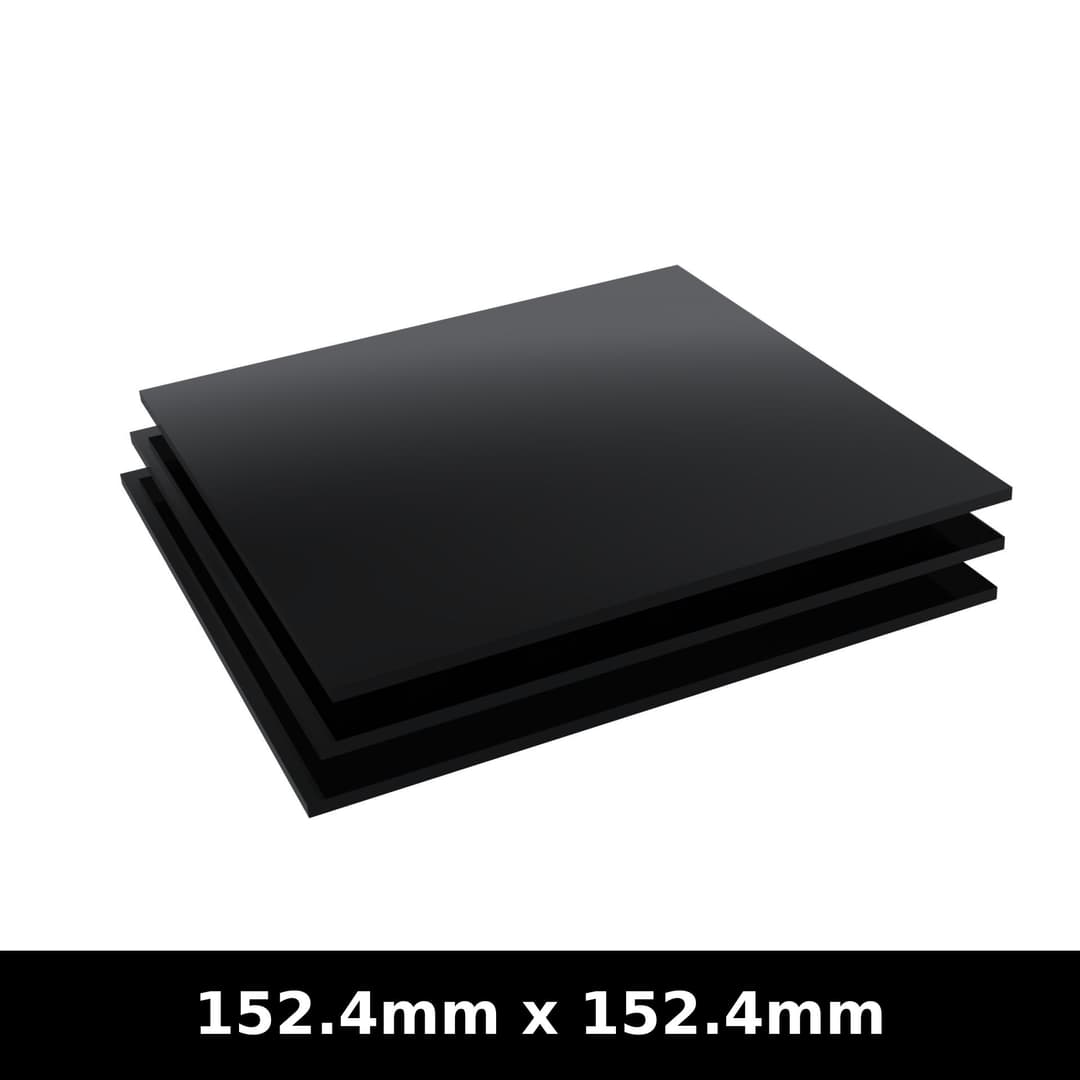

PA401-152.4x152.4 | PA401 Ultra-High Contrast Oleophobic Coated Acrylic Linear Polarizer

Part: PA401-152.4x152.4

Diameter: 152.4x152.4

The MidOpt PA401-152.4x152.4 is an economical polarizer that offers unmatched glare reduction and greatly increased durability compared to polarizing films. They are laminated to a single piece of acrylic and are intended for applications where an external surface must be exposed to potentially harsh conditions, while the internal surface remains in a protected environment. Appropriate examples include lighting applications, rotating polarizers threaded onto the front of lenses, and polarizers that are mounted in camera enclosures. PA401 sheet material is routinely laser cut to any desired custom shape, size, and mounting configuration. These polarizers utilize our HT008 polarizing film and are offered in 3.2mm thickness. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min400 nm
Useful Range Max700 nm
StabledgeNo
Adhesive BackedYes
Surface Quality (Scratch-Dig)N/A
Substrate MaterialAcrylic
Filter Diameter152.4x152.4

Product Availability

Standard Lead Time15 Days
Stock LocationBuilt to Order
Product LifecycleActive

Shipping

Country of OriginUnited States
