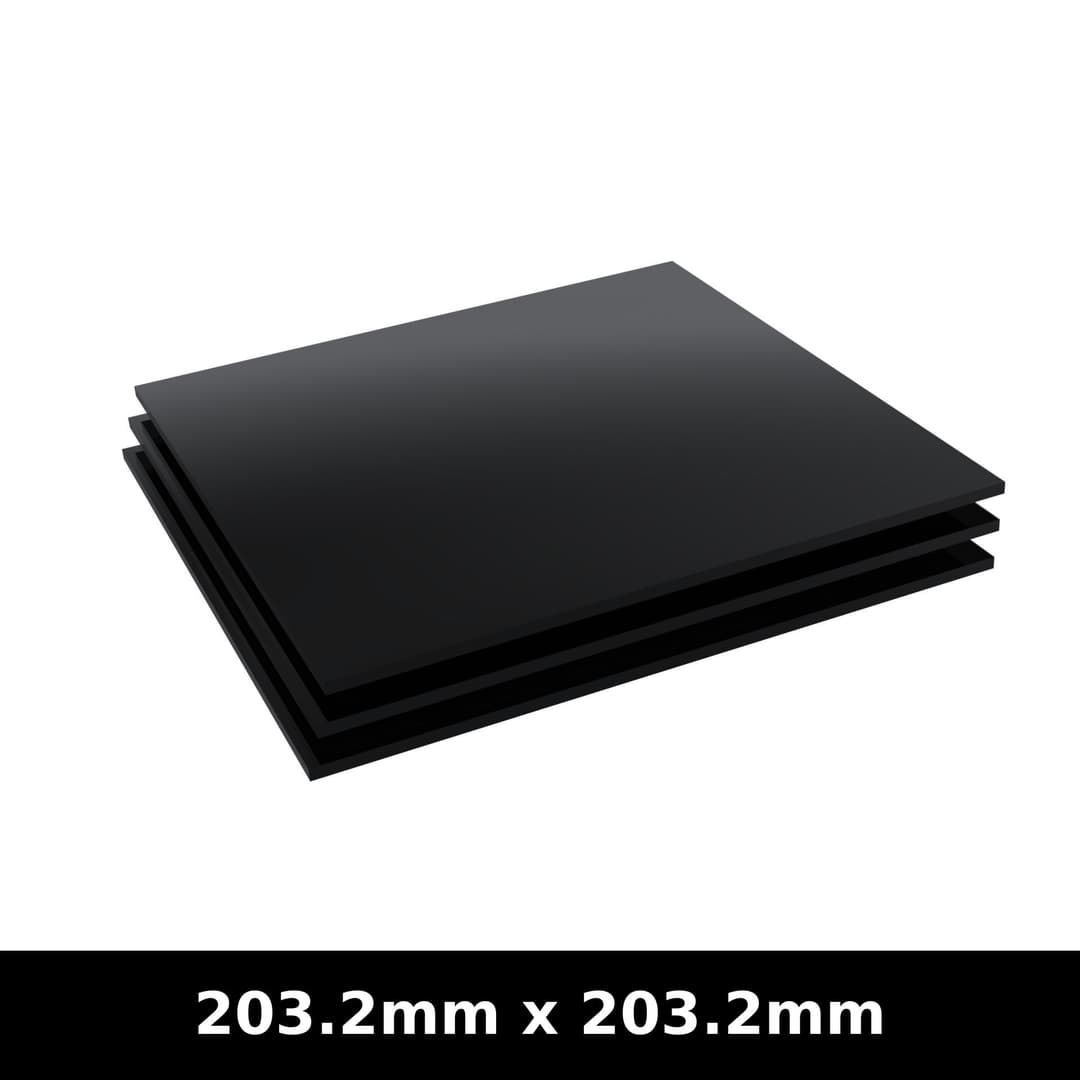

PA401-203.2x203.2 | PA401 Ultra-High Contrast Oleophobic Coated Acrylic Linear Polarizer
Part: PA401-203.2x203.2
Diameter: 203.2x203.2
The MidOpt PA401-203.2x203.2 is an economical polarizer that offers unmatched glare reduction and greatly increased durability compared to polarizing films. They are laminated to a single piece of acrylic and are intended for applications where an external surface must be exposed to potentially harsh conditions, while the internal surface remains in a protected environment. Appropriate examples include lighting applications, rotating polarizers threaded onto the front of lenses, and polarizers that are mounted in camera enclosures. PA401 sheet material is routinely laser cut to any desired custom shape, size, and mounting configuration. These polarizers utilize our HT008 polarizing film and are offered in 3.2mm thickness. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 400 nm |
| Useful Range Max | 700 nm |
| Stabledge | No |
| Adhesive Backed | Yes |
| Surface Quality (Scratch-Dig) | N/A |
| Substrate Material | Acrylic |
| Filter Diameter | 203.2x203.2 |
Product Availability
| Standard Lead Time | 15 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
Shipping
| Country of Origin | United States |
