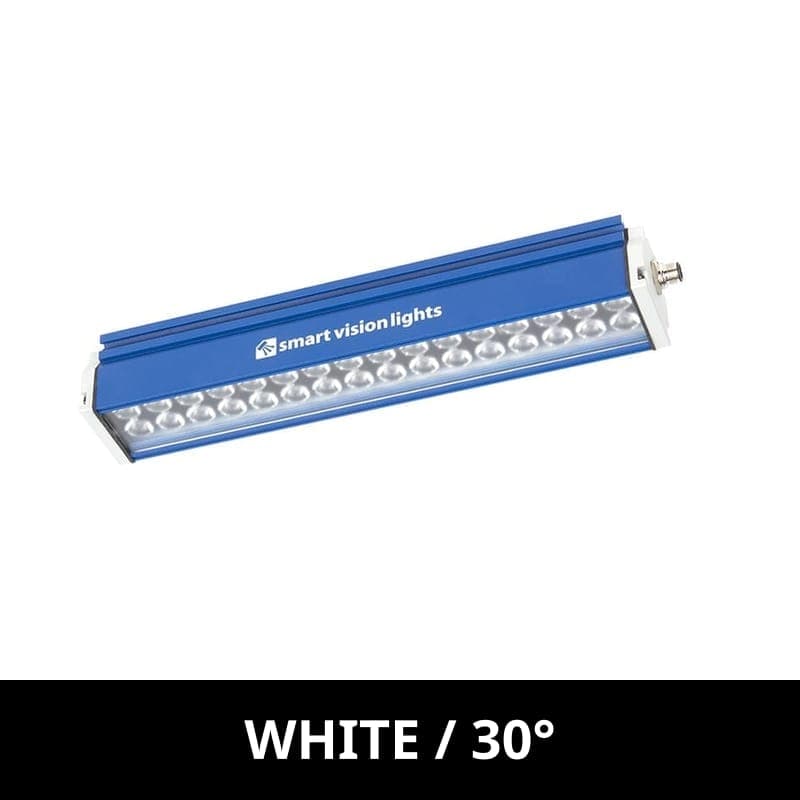

LHI600-DO-WHI-W30 | LHI600-DO Light, 600mm, WHITE, 30 Degree Lens, Not Polarized

The LHI600-DO-WHI-W30 Bar light from Smart Vision Lights is part of SVL's LHI-DO series, which is also referred to as the "Lightgistics" series. This logistics inspired machine vision light incorporates SVL's patented Deca-Overdrive which allows for operation in Deca-Overdrive and Overdrive Strobe operation modes. Deca Overdrive has a more limited duty cycle limitation, but has a increase of up to 10x the standard intensity during the first millisecond of the on period. This model is 600mm long and is in the WHITE color. It features a lens beam angle of 30 Degree. The LHI600-DO-WHI-W30 is Not Polarized. The LHI-DO series is available in White, 625nm Red, and 850nm IR as standard variants. The LHI-DO series is available in 300 and 600mm lengths. An added benefit of the LHI-DO and RHI-DO which make up the lightgistics series is that they feature Smart Vision Lights Energy-Saver Technology. The Energy Saver Technology greatly reduces the peak power required from the power supply during the on periods of the light. This will significantly reduce the power supply size without sacrificing performance. The light features a 5 Pin M12 Male Connector that exits from the end of the light. We recomend our 5PM12 series of cables, such as the 5PM12-5, 5PM12-10, and 5PM12-15 cables. The LHI600-DO-WHI-W30 can be mounted using the M5 T-Bolts that are included with the light. The light body features a T-Slot on the rear and side faces of the light which allow for very flexible mounting options. The Light can also mount to the PB300-M5 pan and Tilt Mount for easy positioning with precision. This light can be dimmed using the Analog Input or the IVP-C1 Potentiometer (Sold Separately), and features PNP and NPN Strobe Inputs. Further customizations can be performed upon request from Machine Vision Direct. For applications that require constant-on operation, the LSR600 would be the suggested replacement.
